Aluminum Roller Shutter Door Machine Rolling Shutter Strip Door Making Roll Forming Machine

Category Tags ,

Roller up door forming machine&Spare parts,More efficient and accurate execution of production orders,High equipment reliability,Little waste of materials and energy,High productivity.

Request A Quoation
WhatsApp

Table of Contents

Working video
Machine specification

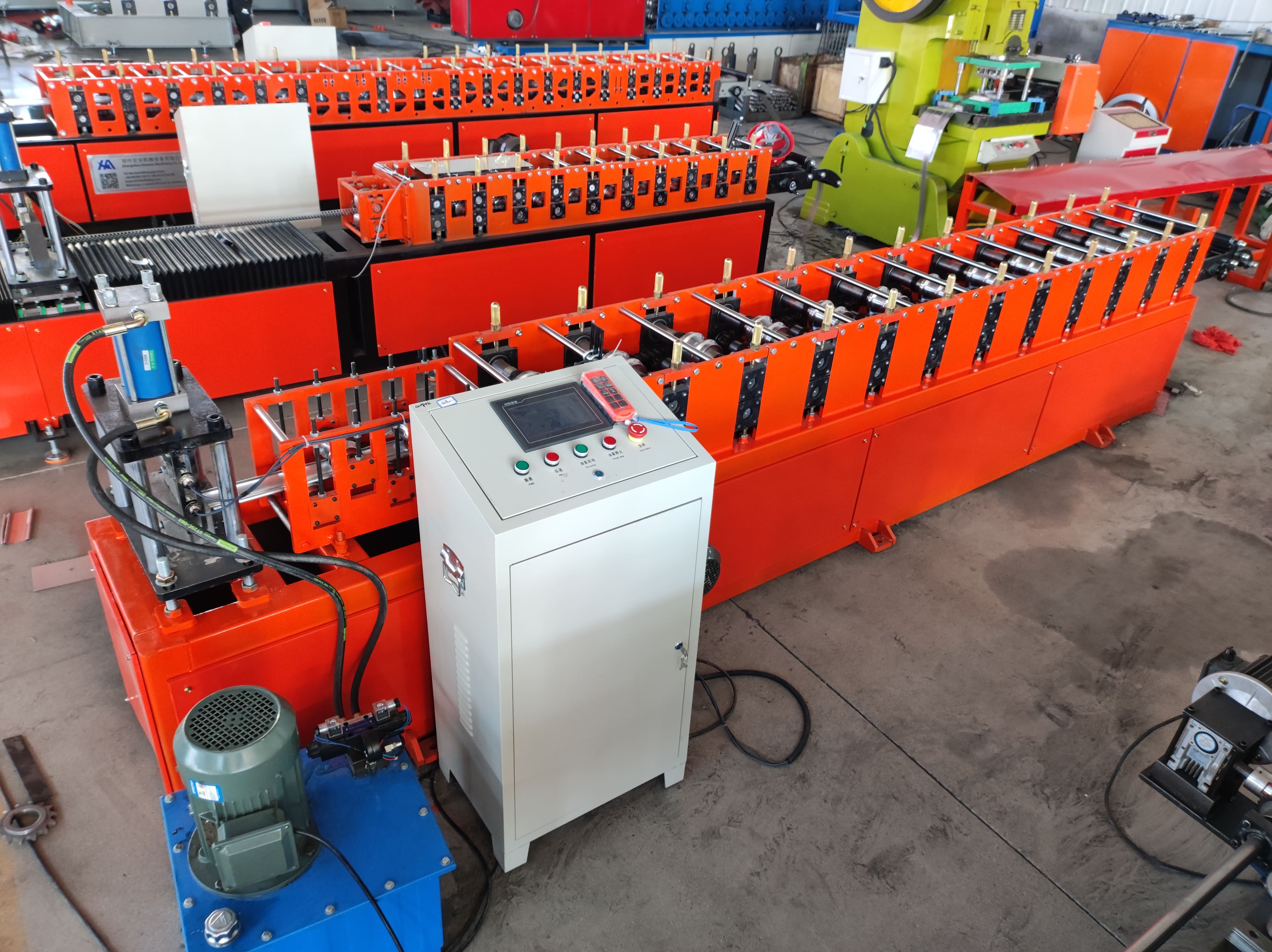

Automatic 0.3-1 mm Galvanized Shutter Door Roll Forming Machine Rolling Shutter Panel Machine Price For Sale

Item
Specification
Voltage
380V
Dimension(L*W*H)
5900*900*1500
Weight
3500kg
Rolling thinckness
0.8-2MM
Feeding width
124mm
Raw material
GL GI PPGI PPGL
Roller material
45#steel Chrome Plated
Shaft material
45# Steel Outer Diameter: 70mm
Cutting blade material
GCr 12 High Grade Steel
Main frame
350mm/400mm H-Beam
Control system
PLC(imported Brand)
Cutting type
Automatic Hydraulic Cutting
Decoiler
5T Manual Decoiler(with braking function)
Keywords
Slat Shutter Door Forming Machine
Machine features
The rolling shutter door acts as a horizontal partition in the same way as the wall. It consists of a curtain plate, a seat plate, a guide rail, a support, a reel, a box, a control box, a rolling door machine, a limiter, a door lintel, a manual quick-release switch device, and a button switch. It is composed of 13 parts, including safety device, and is generally installed in places where it is inconvenient to use walls to separate.

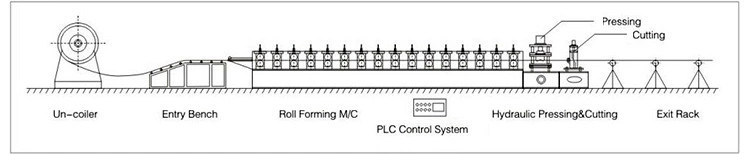

The picture shows the whole process of cold roll forming machine :

MOTORIZED UNWINDING — Feeding guide — Roll forming — Leveling — Cutting — Run out product stacker

packaging types of bags
Machine functions

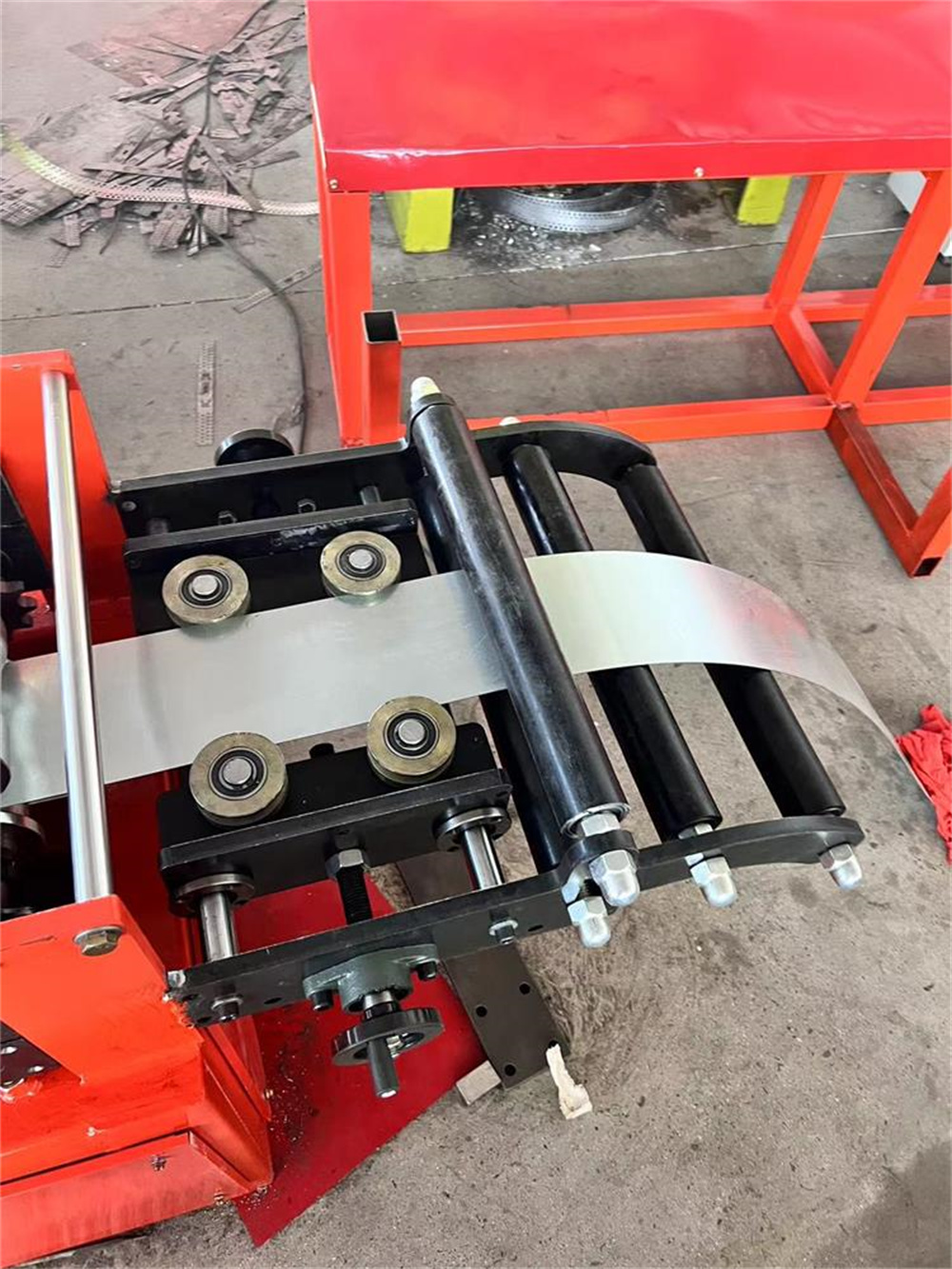

-Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

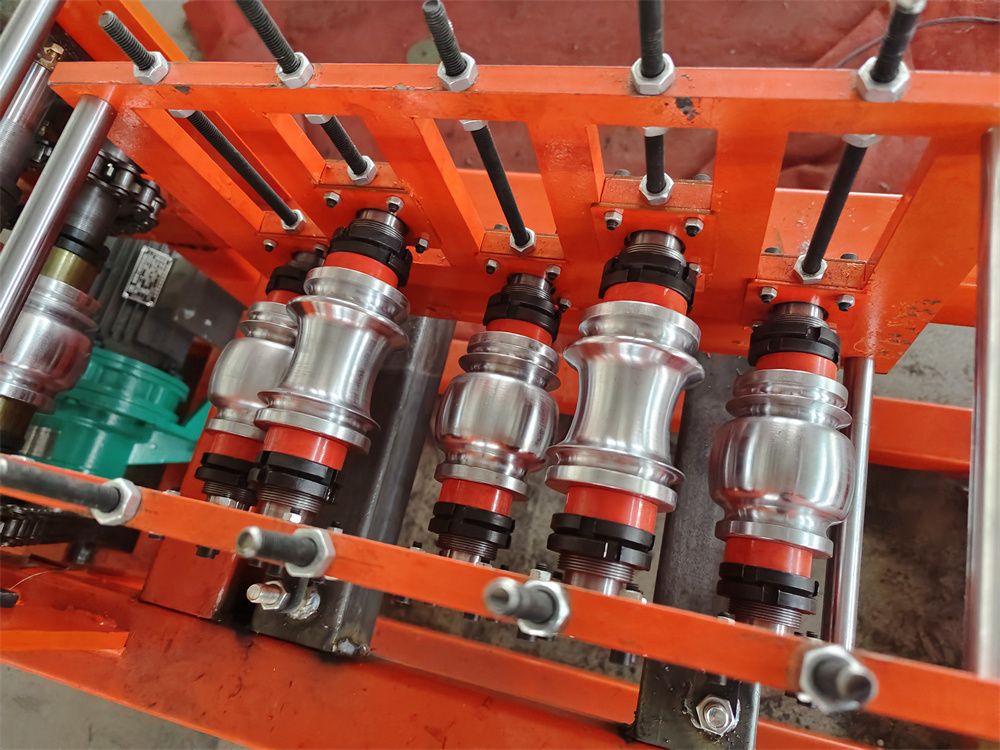

Main Rollers

The wheel material is heat treated with bearing steel.

Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

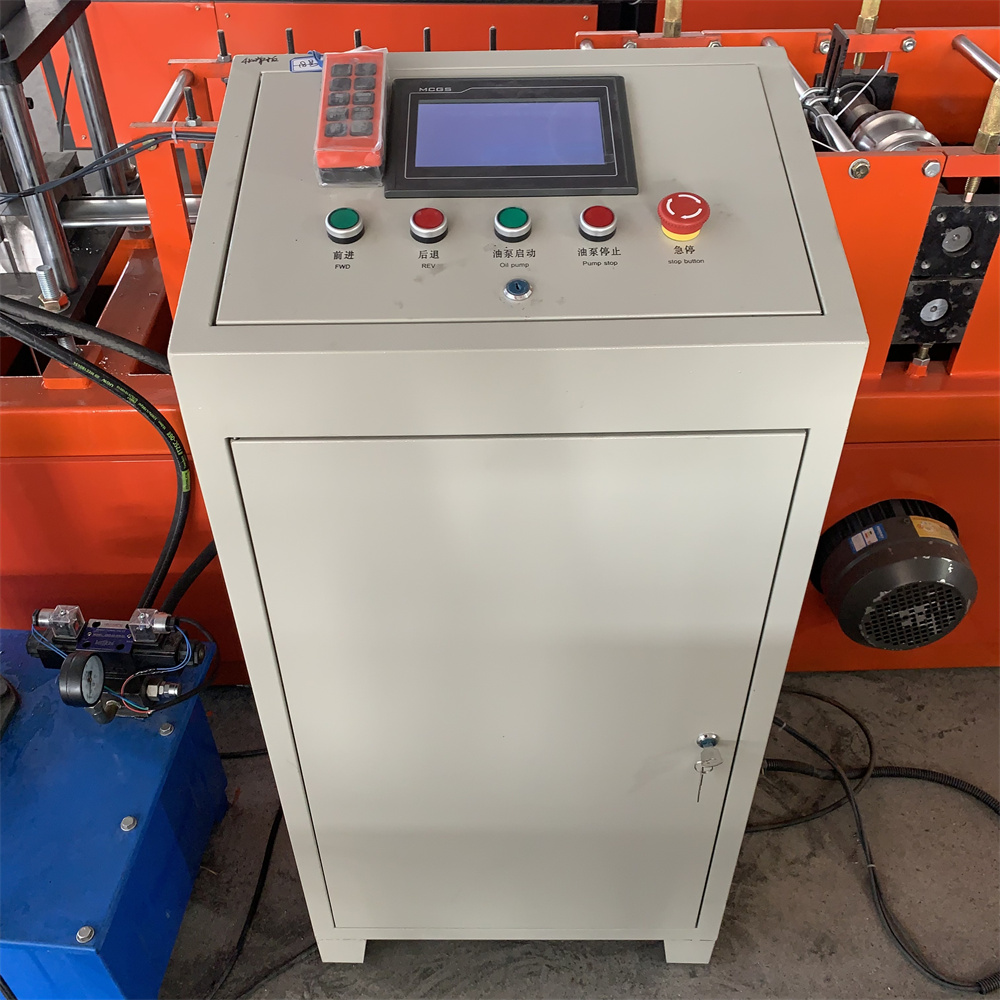

Control Cabinet

PLC:Delta PLC(or according to customer’s inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English / Russian/Portuguese Or Spanish

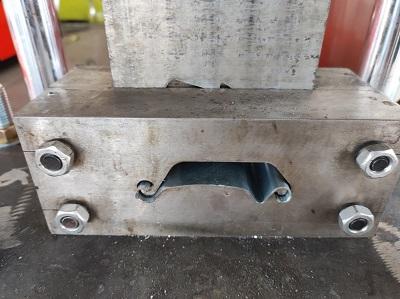

Cutter
Cutting head adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades:Cr12,quenching treatment.
Hydraulic station
Fast cooling, low failure rate, extending the service life of the hydraulic pump station,ensure the equipment can operate 24 hours without downtime.
Machine options
Roller up door forming machine&Spare parts
-More efficient and accurate execution of production orders;
-High equipment reliability;
-Little waste of materials and energy;
-High productivity;
-High quality materials, get a longer service life;
-All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
-Customized coil processing solutions to solve all aspects of technical.
Machine applications
Our steel strips rolling shutter door roll forming machine for different models based on different designs or customer’s samples It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength

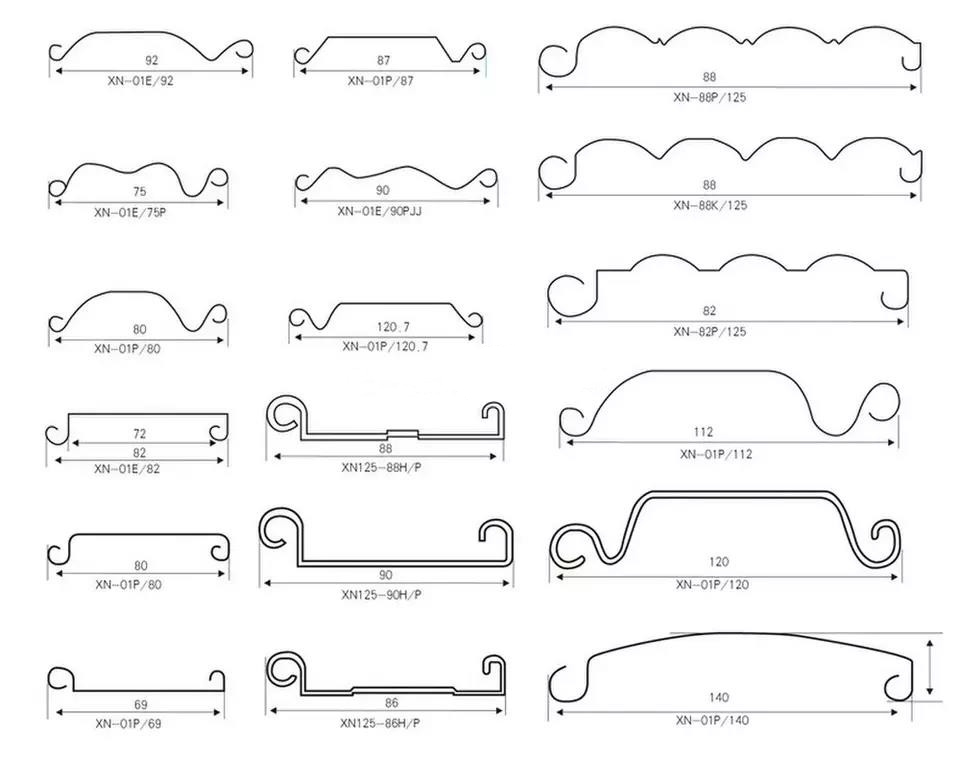

Profile drawing of Shutter door roll forming machine
