Arch Long Span Roofing Sheet Used Panel Roll Forming Machinery Steel Arch Roofing System Machine
Arch Roof Making Machine Multiple Type Building Shape Forming Machine
KQ Span Building Arch Roof Steel Sheet Car Park/Yard Roof Making Machine Vertical Type Roof Building Machine
|
Machine type:
|
Large Span Curve Roof Forming Machine
|
|
Machine usage:
|
Arch steel quonset building, warehouse, hangars,garages,sheds,animal house, greenhouse and so on
|
|
Main machine dimension:
|
8.8 *2.3*2.35m (stright sheet forming part)
|
|
Auxiliary machine dimension:
|
4*2.23*2.35m (curving part)
|
|
Weight:
|
13.5tons
|
|
Suitable Material thickness:
|
0.8mm to 1.5 mm
|
|
Production Capacity
|
15 m/min
|
|
Steel sheet Feeding width
|
1250mm
|
|
Steel panel Effective width
|
800mm
|
|
Power supply:
|
AC380V±10%, 50Hz, 3 phase + 480V power transformer
|
|
Suitable material
|
Galvanized Steel Sheet, Colored Steel Sheet, Galvalume
|
Large span forming machine is to roll and press the colored steel sheet to be grooved shape, then to be arched shape with grooved section, finally to be sewed together by sewing machine.

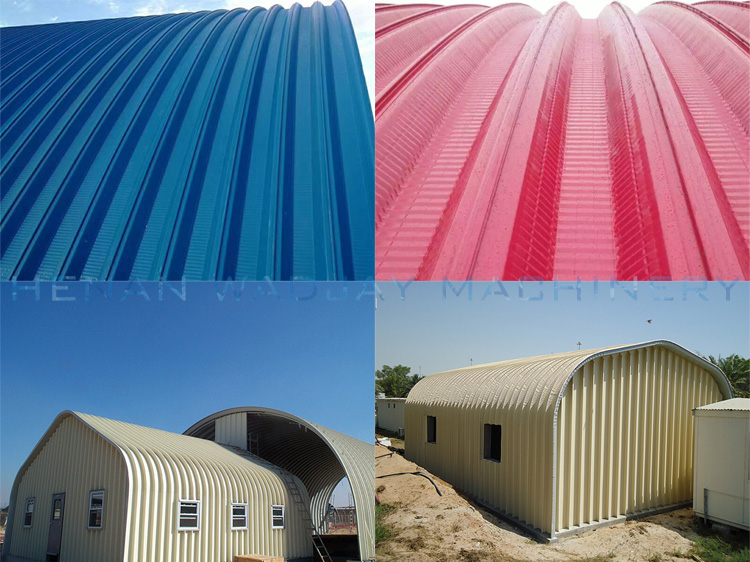

This kind of finished sheet will be used for lightweight steel roofing construction, The structure characteristics: rapid construction, low construction cost, low requirements of enviromental conditions, non-pollution, simple and lightness, high strenth. The seismic performance is good. Proffessionla line standardization of production. we can ensure the quality, modern design, elegant and practical.

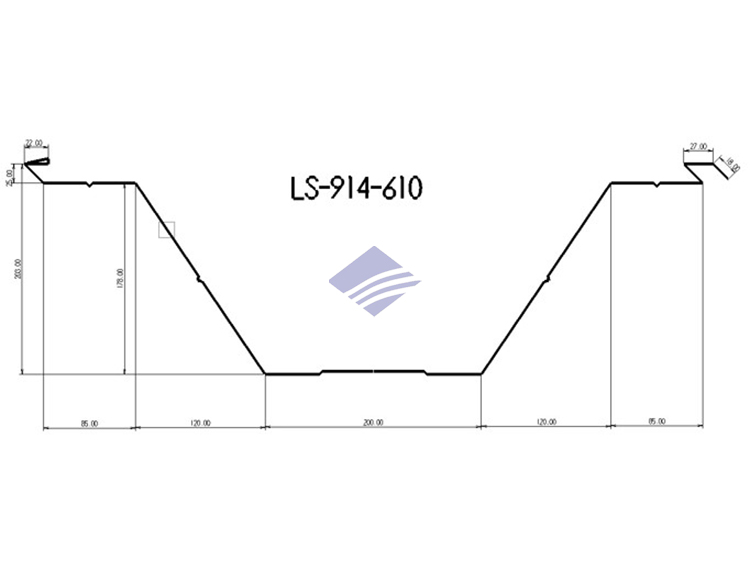

Profile Drawing of Structural Manual Sheet Standing Seam Roof Panel Forming Machine:

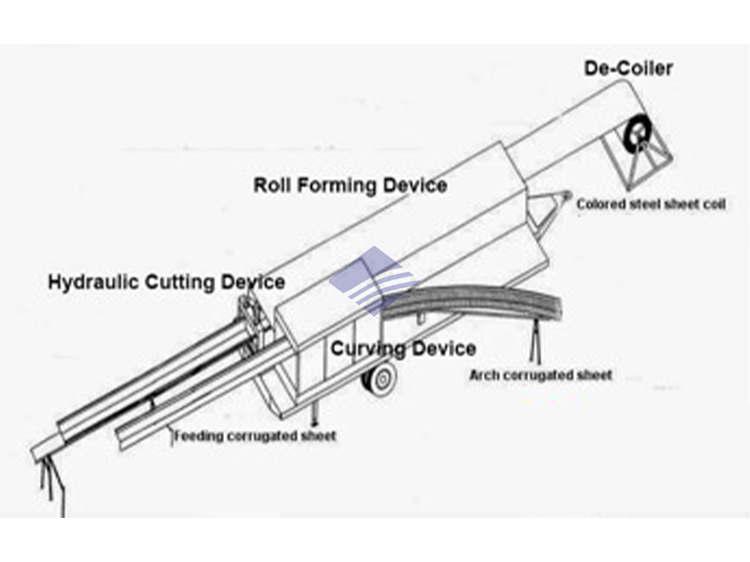

Decoiler — Roll Forming Device — Hydraulic Cutting Device — Curving Device
