Roller material: 45 # steel Hardwood plated on the surface
Automatic Steel Frame C Z U L M Purlin Cold Roll Forming Machine Manufacturer
|
Item
|
Data
|
|
Chain specification
|
1 inch chain
|
|
Speed
|
8-15m/min
|
|
Raw material
|
Color steel sheet or galvanized steel sheet
|
|
Material thickness
|
0.3-2.0mm or customized
|
|
Forming roller material
|
45# steel plated with chrome
|
|
Shaft diameter
|
50 mm
|
|
Forming roll station
|
18-20 rows
|
|
Main motor power
|
4 KW 5.5 KW 7.5KW(according to type)
|
|
Hydraulic power
|
4 KW (according to type)
|
|
Control system
|
PLC control
|
Advantanges:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Steel Purlin Roll Forming Machine
M purlin roll forming machine is an equipment that produces L shaped steel channels continuously out of galvanized or cold rolled
steel strips from feeding, punching for holes, bending and cutting.

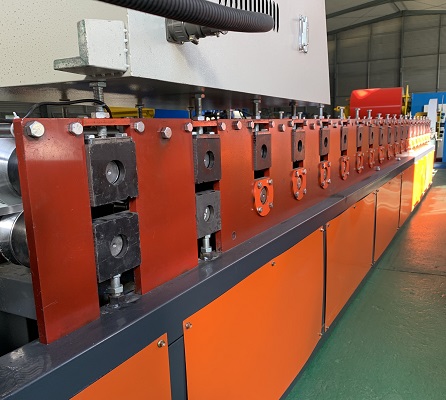

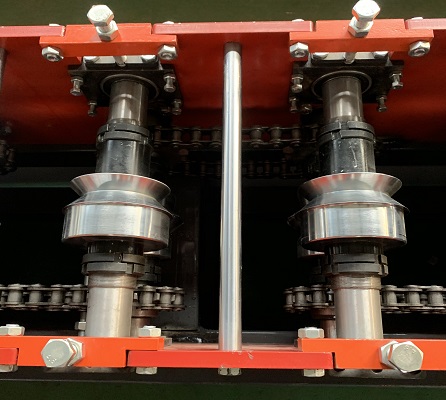

Roller material: 45 # steel Hardwood plated on the surface

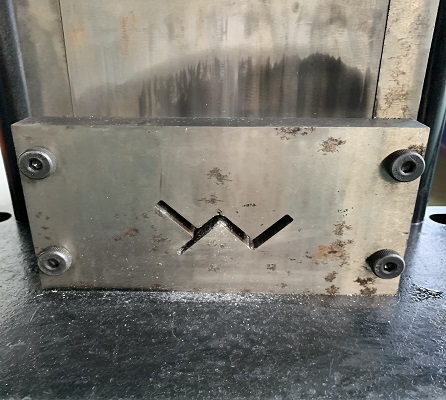

Shear material:Gr12 hydraulic shear Stepless shearing system after forming, no need for shearing tool change, manual changeover

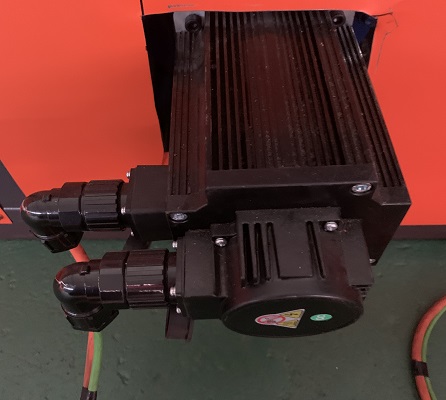

Servo motor 5.5 kW Protection class IP55 Motor explosion-proof grade ExdIICT4 Motor ratio 1:43
3kw pumping station Hydraulic station pressure at 10-12mpa 46# hydraulic oil Size: 500*400*700mm

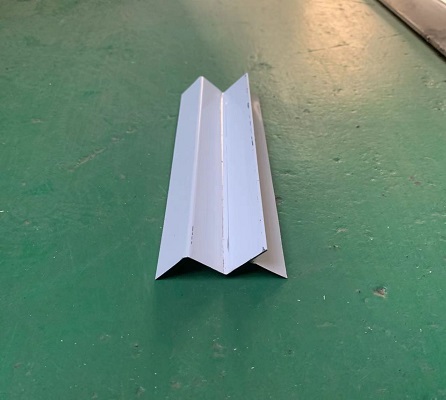

The board surface is flat, no wrinkles, no scratches, and the molding effect is good.We can process the machine according to customers’ demand and also can give professional suggestions if the customers need~

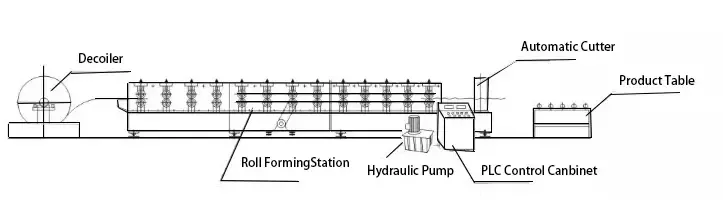

TECHNICAL FLOW PROCESS
