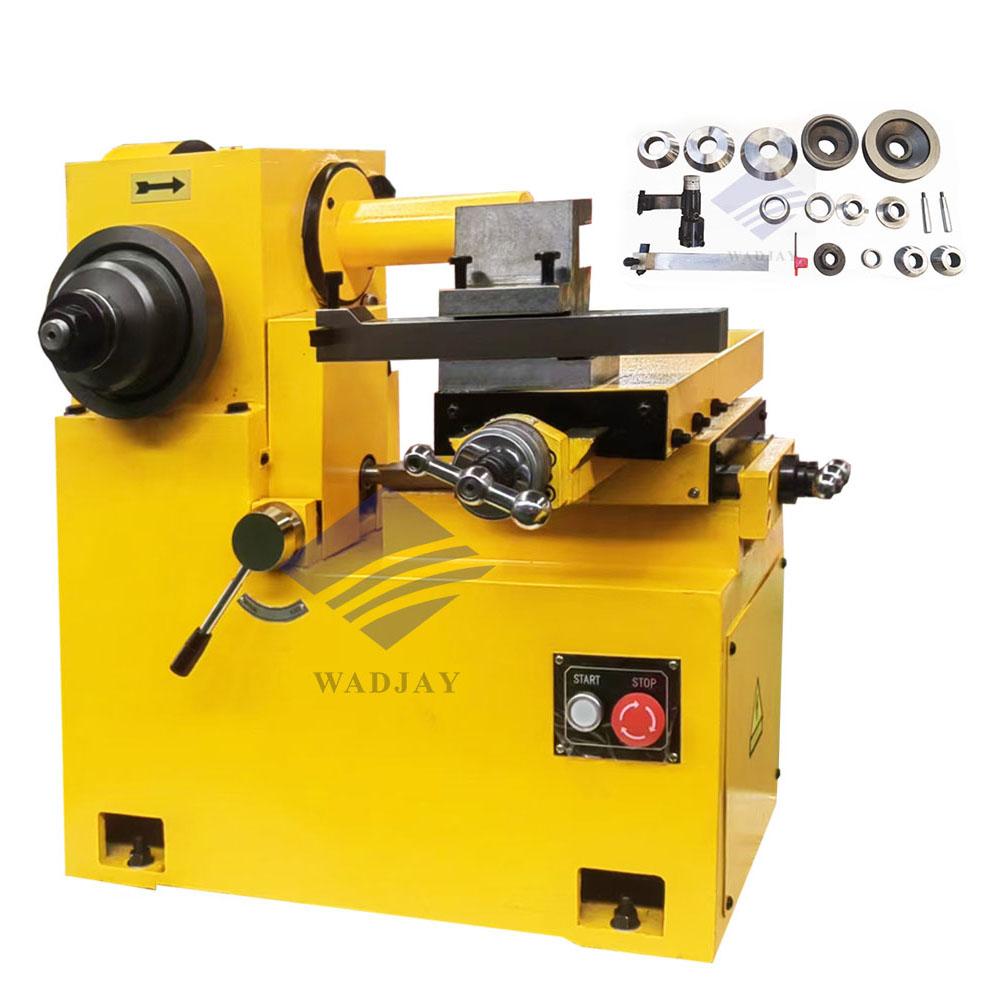

Brake Drum Repair Lathe Disc Lathe Repair Automotive Brake Disc Repair Tool
110V Brake Drum Repair Lathe: Compact design (80×66×84cm), uses Cr12 special steel cutting tools, repair accuracy ≤0.03mm. UL and ISO certified.
| Technical Specifications | Values |
|---|---|
| Model | C9335 |
| Maximum Turning Diameter | 650mm |
| Maximum Workpiece Length | 250mm |
| Operating Voltage | 380V 50Hz |
| Spindle Speed | 30-90 RPM (Variable Speed) |
| Spindle Motor Power | 22kW |
| Machine Weight | 196kg |
| Maximum Load Capacity | 300kg |
| Tool Material | Cr12 Special Steel (HRC 58-62) |
| Accuracy Standard | Flatness Error ≤0.02mm |
| Certification Standards | CE / ISO 9001 |
| Warranty Policy | 1-year full machine warranty |
| Function Module | Technical Description |
|---|---|
| Precision Repair System | Hydraulic self-centering chuck (accuracy ±0.01mm) |
| Dynamic Balance Calibration | Automatically detects brake disc runout and compensates |
| Multi-Mode Machining | Supports roughing/finishing/contouring machining modes |
| Intelligent Cooling System | Automatic coolant circulation and filtration (temperature ≤35℃) |
| Data Logging | Stores machining parameters for the last 100 processed parts |
