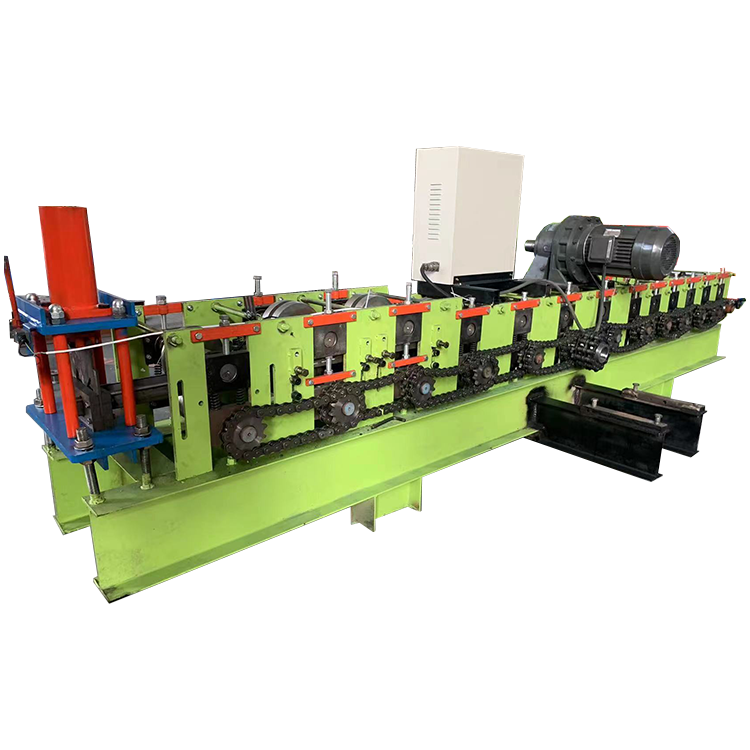

C Z U Light Keel Stud Purline Machine Cold Roll Forming Machine
1. With AMS Controls system
2. Hydraulic station and cooling Unit
3. Flying shearing device
4. Decoiler
5. With Gearbox Transmission
6. Post cutting
C Z U Light Keel Stud Purline Machine Cold Roll Forming Machine
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Construction works
|
|
Product Name
|
C Purlin Rool Forming Machine
|
|
Frame Materials
|
350H steel
|
|
Diameter
|
80mm
|
|
Forming roller
|
16row
|
|
Forming Shaft
|
Material 45# quenched and tempered
|
|
Max.speed
|
15m/min
|
|
Effective with
|
80-300mm
|
|
Pressing width
|
1000mm
|
|
Cutting System
|
Hydraulic Cutting
|
|
Main Engine power
|
22 KW with cycloidal reducer
|
|
Electric tension
|
380V 50 Hz 3 Phase or as your requirements
|
|
Hydraulic oil
|
40# hydraulic oil
|
|
Material of cutting table
|
Cr 12 mould steel with quenched treatment
|
Many houses use purlins to lift the rafters to support the rafters. The purlins are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel purlin from purlin machine is lighter in size,which is in line with the characteristics of the roof purlin.
Steel frame purlin machine can be designed with C Z , that is CZ purlin forming machine, suitable for different sizes and thickness of raw materials, which basically meets the needs of different purlins on the market.
1. Suitable for 1.0-1.5mm thickness for galvanized steel sheet with yield strength max.235Mpa;
2. Line speed: Max.60m/min and +/-1.0mm cutting tolerance for 6000mm length;
3. 14 roller stands;
4. AC380/AC480V, 50Hz/60Hz,65Kw;
5. Profile drawing:
C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.
3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
