Three Layer Metal Sheet Corrugated Color Steel Roof Wall Tile Roll Forming Machine Price
The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability.
|
Processing material
|
aluzinc/galvanized steel/colored steel coil
|
|
Material thickness
|
0.25mm-0.8mm
|
|
Feeding width
|
1200mm or customer request
|
|
Effective width
|
As drawing or customer request
|
|
Main motor power
|
4kw
|
|
Hydraulic pump power
|
4kw
|
|
Shaft diameter
|
75mm
|
|
Forming steps
|
13/13/13 forming steps
|
|
Main frame
|
350H steel frame
|
|
Side plate thickness
|
16mm
|
|
Roller material
|
45# forged steel, with hard chrome plating
|
|
Control systerm
|
(Taiwan brand)Delta PLC control system with touch screen
|
|
Cutting blade material
|
Cr12
|
|
Working speed
|
About 10-12m/min
|
|
Transmission way
|
1 inch chain drive
|
|
Machine size (mm)
|
7800*1500*1500mm
|
|
Machine weight
|
7 tons
|
|
Power supply
|
380v,3phase,50hz or accodring to customer request
|

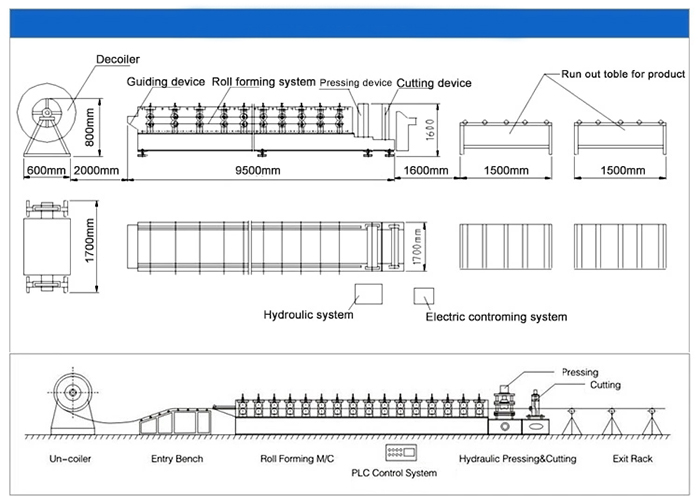

Main workflow of three layer colored steel roll forming machine:
Uncoiler —– Molding core —– Hydraulic System —– Automatic Control system —– Step Formed Mechanism —–Automatic Shearing Mechanism —– Products Receiving Tables
1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two
hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.
The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings,such as workshops, warehouses, gymnasiums, exhibition halls, theaters and other room surfaces and walls.
