Why the Construction Industry is Switching to three-Layer Roll Forming Technology
In the rapidly evolving construction material industry, manufacturers face mounting pressure to deliver high-quality glazed roofing tiles faster and cheaper. Traditional single-layer machines struggle with material warping and slow output, leading to project delays. This is where the three-layer glazed tile roll forming machine becomes a game-changer.
How Our Machine Solves Critical Production Challenges

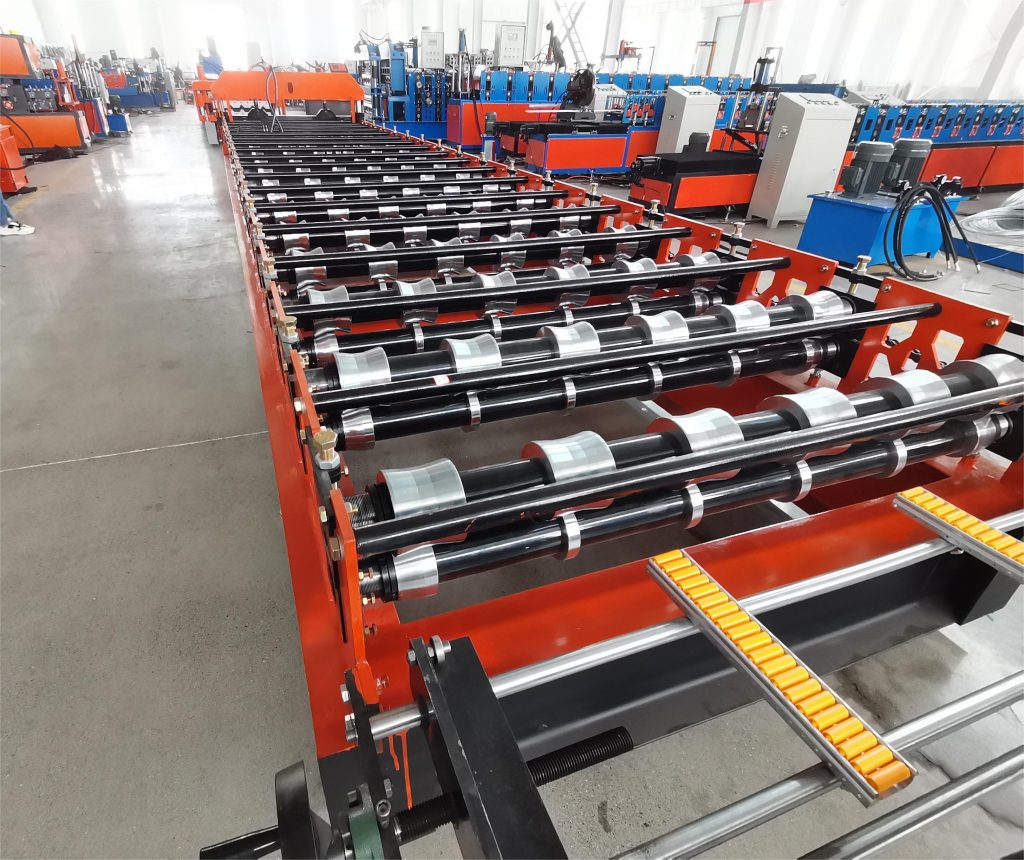

Three-Layer Glazed Tile Roll Forming Machine
Our advanced roll forming system integrates three precision-engineered layers to transform raw coils (0.3-0.7mm steel/aluminum) into flawless glazed tiles at 5 meters per minute. Here’s what sets it apart:
Key Technical Advantages
| Feature | Specification | Industry Impact |
|---|---|---|
| Triple-Layer Forming | 9 hardened steel rollers | Eliminates material stress cracks |
| Hydraulic Cutting | Cr12 blade ±1mm precision | Zero material waste |
| Delta PLC Control | Touchscreen programming | 30% faster setup than competitors |
| Dual-Material Handling | Steel & aluminum coils | Produce hybrid roofing systems |
Case Study: A UAE manufacturer increased monthly output by 170% while reducing energy costs by 22% after installing our system.
Applications Across Global Construction Projects
This machine produces tiles ideal for:
- •Commercial Buildings: Walmart-style trapezoidal PV6 panels
- •Heritage Restoration: Authentic glazed tile replication (Type 840/850)
- •Disaster-Resistant Roofing: Military-grade interlocking profiles
Custom Engineering for Your Unique Needs
We don’t sell generic machines. Every unit includes:
- •Free Profile Design: Send your CAD file for custom roller tooling
- •Voltage Adaptation: 380V/480V/60Hz configurations
- •Onsite Training: 5-day operator certification program
Certifications That Build Trust
All machines include:
- •CE Mark: Full compliance with EU Machinery Directive
- •ISO 9001: Audited quality management system
- •10-Year Roller Warranty: Industry’s longest coverage
