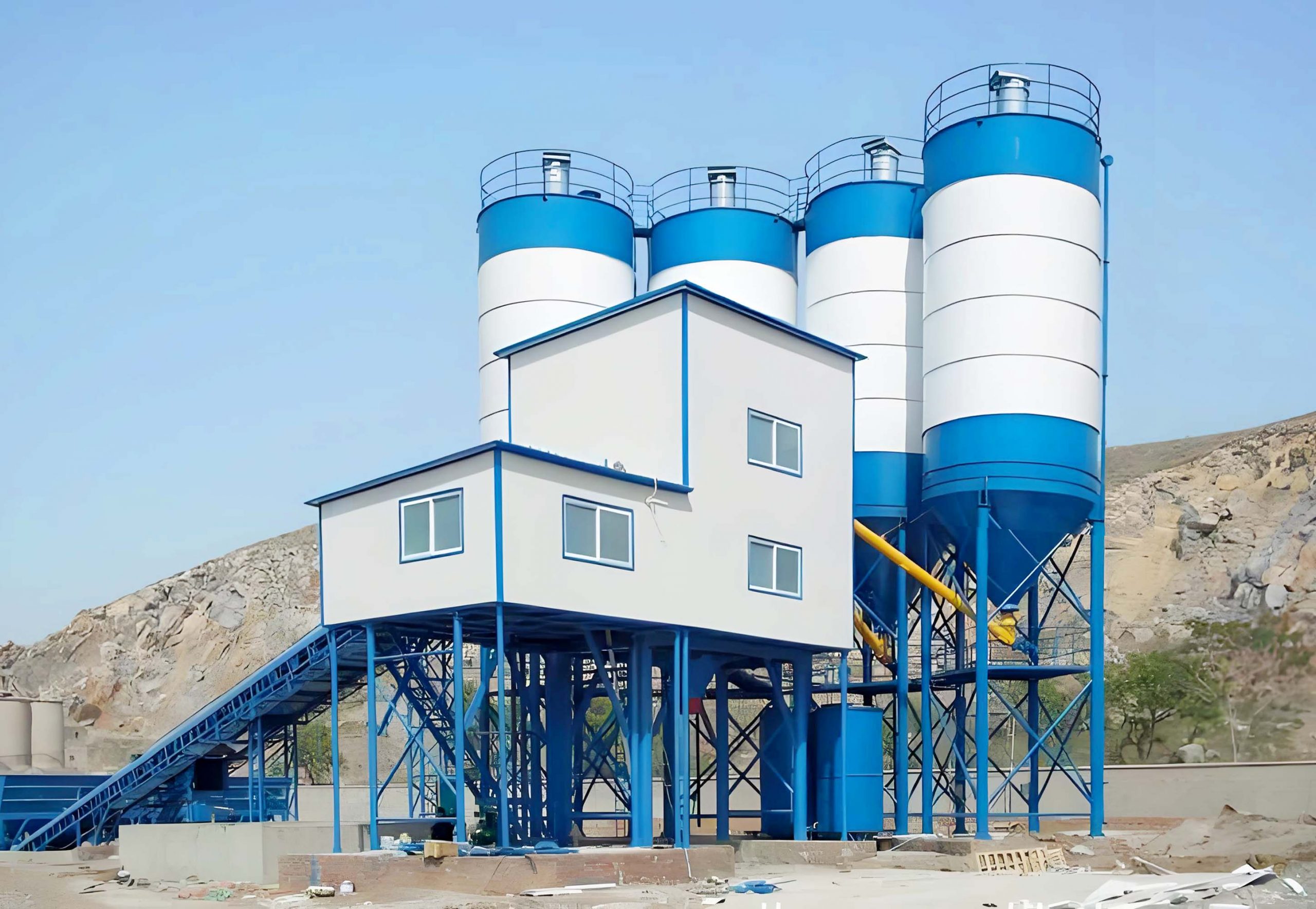

HZJS Series Stationary Concrete Batching Plant | Heavy Duty Twin-Shaft Mixer
HZJS series stationary concrete batching plant offers 60-240m³/h capacity with heavy-duty twin-shaft mixer & automatic PLC control for continuous production.
| Model | Production Capacity | Mixer Model | Mixer Power | Discharge Height | Max Aggregate Size |
| HZJS-60 | 60 m³/h | JS1000 | 2 × 18.5 kW | 3.8 / 4.0 m | ≤ 60 mm |
| HZJS-90 | 90 m³/h | JS1500 | 2 × 30 kW | 3.8 / 4.0 m | ≤ 80 mm |
| HZJS-120 | 120 m³/h | JS2000 | 2 × 37 kW | 4.0 / 4.2 m | ≤ 80 mm |
| HZJS-180 | 180 m³/h | JS3000 | 2 × 55 kW | 4.2 m | ≤ 80 mm |
Heavy-Duty Twin-Shaft Mixer: Equipped with high-chromium alloy blades and liners delivering an extended service life of 30,000 to 50,000 batches.
Automated Smart Operation: Full PLC interface with real-time reporting supports English, Spanish, French, Russian, and Arabic for effortless global operation.
High-Precision Batching System: Features digital load cell sensors, two-stage pneumatic feeding doors, and automatic drop compensation software.
Modular Heavy-Duty Structure: Built with high-strength steel frames designed for fast modular installation and long-term structural stability under continuous load.
Precision Batching & Dosing: Accurately weighs cement, water, aggregates, and additives through digital sensors and automatic drop compensation software.
Homogeneous Concrete Mixing: Delivers high-efficiency compulsory mixing to ensure rapid and uniform dispersion of raw materials in every batch.
Automated Process Control: Automatically manages the entire workflow from material loading, weighing, and mixing to discharging via the PLC system.
Data Logging & Reporting: Tracks daily production capacity, material consumption, and batching accuracy with real-time data export options.
Cement Silo Capacities: Optional 50T, 100T, 150T, or 200T bolted/welded cement silos based on storage needs.
Aggregate Batcher Bins: Customizable 3-bin or 4-bin aggregate batching machines (PLD series) for various formula requirements.
Enclosure & Environmental Upgrades: Optional full-plant outer enclosure and advanced pulse dust collection systems for strict environmental standards.
Control System Customization: Custom multi-language control software programming and remote diagnosis module options.
Commercial Ready-Mix Concrete Plants: Mass production of high-grade ready-mix concrete for commercial distribution.
Large Infrastructure Projects: Construction of highways, high-speed railways, bridges, tunnels, dams, and airport runways.
Precast Concrete Factories: Production of concrete pipes, precast wall panels, beams, and structural elements requiring strict mix consistency.
Municipal & Industrial Construction: Large-scale commercial real estate, industrial parks, and urban development projects.
