Wadjay cut to length slitting machine processes 1250–1500mm wide, 0.3–3.0mm thick coils at 30 m/min. Multi-roller leveling, gang slitting, synchronized flying shear, smart PLC. 5,000kg frame. CE/ISO certification.
Cut to Length Slitting Machine — Integrated Leveling, Gang Slitting & Flying Shear Production Line
Why Choose a Cut to Length Slitting Machine?
A cut to length slitting machine is the productivity powerhouse for any commercial sheet metal service center, steel coil distributor, roofing strip processor, and HVAC ductwork fabricator that needs to convert wide master coils into precise narrow strips — and then cut those strips to exact lengths — in one continuous, automated operation.
The Wadjay metal steel sheet cut to length slitting machine integrates three highly efficient operations into a single heavy-duty line :
- Multi-Roller Precision Leveling — completely removes coil memory and material stress for flat, distortion-free sheets
- Adjustable Rotary Gang Slitting — tool steel slitting arbors with quick clearance adjustment handle diverse strip width requirements
- Synchronized Flying Shear — high-speed hydraulic cutter tracks material speed to deliver clean burr-free end cuts on the fly
Processing 1250–1500mm wide coils at 0.3–3.0mm thickness with a line speed of up to 30 meters per minute, this machine is built on a rigid 5,000kg frame and orchestrated by a smart PLC touch control system . For steel service centers and roofing contractors, it means converting raw coil into shelf-ready strip stock with minimal labor and near-zero material waste.cut to length slitting machine
Key Technical Specifications
| Parameter | Wadjay Cut to Length Slitting Line |
|---|---|
| Model Classification | Cut to Length Slitting Line |
| Processing Width | 1250 – 1500 mm |
| Material Thickness | 0.3 – 3.0 mm |
| Line Speed | Up to 30 m/min |
| Total Machine Weight | 5,000 kg (rigid heavy-duty frame) |
| Motor Power | 15 – 22 kW high-torque motor drive |
| Operation Voltage | 220V / 380V Three-Phase (customizable to 220V/415V/440V at 50Hz/60Hz) |
| Leveling System | Multi-stage multi-roller precision leveler |
| Slitting System | Adjustable rotary gang blades, tool steel arbors |
| Cutting System | Synchronized high-speed hydraulic flying shear |
| Control System | Smart PLC computer with touch screen + built-in encoder |
| Coil Capacity | Handles heavy raw coils up to 5–10 Tons |
| Feed System | Continuous uncoiling & feeding without coil slippage or surface scratching |
| Length Counting | Automated batch length counting with quantity tracking |
| Options | Hydraulic powered uncoiler with loading car; Automated stacking table; Custom electrical motors for localized grids |
How the Cut to Length Slitting Line Works
The Wadjay cut to length slitting machine executes a fully synchronized 5-stage production cycle :
- Continuous Uncoiling & Feeding — handles heavy raw coils up to 5–10 tons smoothly without coil slippage or surface scratching
- Multi-Roller Precision Leveling — multi-stage rollers completely remove coil memory and material stress, delivering flat, distortion-free sheets

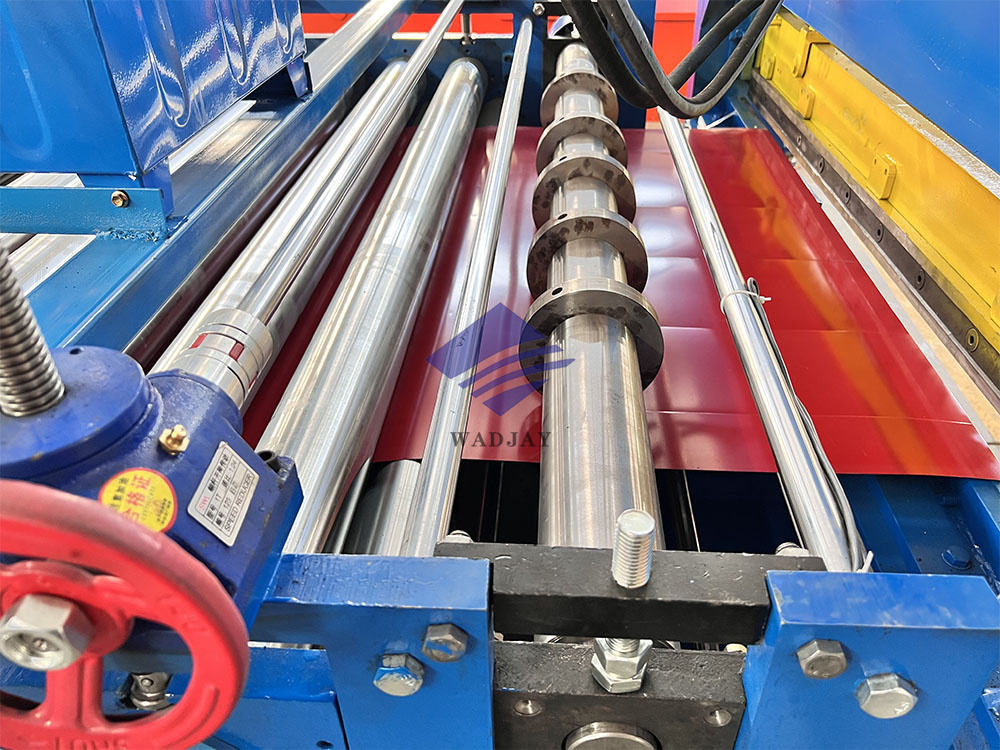

- Adjustable Rotary Gang Slitting — tool steel slitting arbors with quick clearance adjustment split the leveled sheet into diverse strip widths
- Synchronized Flying Shear — high-speed hydraulic cutter tracks material speed to deliver clean burr-free end cuts on the fly, with no line stoppage
- Automated Batch Length Counting — built-in encoder and smart PLC computer track output quantities and execute precise cut lengths, with optional automated stacking table for finished product collection
The entire process is orchestrated by a smart PLC touch control system, allowing operators to set strip width, cut length, production batch, and piece count with minimal training.
Application Scenarios:cut to length slitting machine
The cut to length slitting machine serves a wide spectrum of metal processing industries :
- 🏢 Commercial sheet metal service centers — multi-width slitting and cut-to-length for inventory diversification and just-in-time delivery
- 🏭 Steel coil distribution — high-volume conversion of master coils into standardized strip sizes
- 🏠 Roofing strip processing — standing seam roofing, flashing, gutter components, and fascia trims
- 🌬️ HVAC duct blanking — precise strip preparation for rectangular and spiral duct manufacturing
- 🚗 Automotive structural bracket fabrication — narrow strip and blank production for stamped brackets
- 📦 Appliance cabinet manufacturing — panel blanks and strip components for appliance enclosures
The machine’s ability to process 0.3–3.0mm thickness range at widths up to 1500mm makes it exceptionally versatile — one line serves mixed-material workshops without retooling.
Why Wadjay’s Cut to Length Slitting Machine Stands Out
- True 3-in-1 integration — leveling + slitting + flying shear cut-to-length in a single continuous line, eliminating inter-machine handling
- Precision multi-roller leveling — multi-stage rollers completely remove coil memory and material stress for flat, distortion-free sheets
- Quick-change gang slitting — adjustable rotary blades with tool steel arbors allow rapid strip width changeover
- Burr-free flying shear — synchronized high-speed hydraulic cutter tracks material speed, delivering clean end cuts without stopping the line
- Smart PLC automation — touch screen control with built-in encoder for automated batch length counting and quantity tracking
- Heavy-duty 5,000kg frame — rigid construction eliminates vibration, ensuring straight, consistent strips at 30 m/min
- High-torque 15–22kW motor — stable torque across thin aluminum foil to 3.0mm carbon steel
- 5–10 ton coil capacity — continuous uncoiling & feeding handles heavy raw coils without slippage or surface scratching
- Modular options — hydraulic powered uncoiler with loading car, automated stacking table, and custom electrical motors for any global grid
- Factory-direct engineering — full customization of width, thickness range, speed, voltage, and control system
Frequently Asked Questions
Q1: What coil widths and thicknesses can this cut to length slitting machine process?
A: The machine handles 1250–1500mm width and 0.3–3.0mm thickness — suitable for galvanized steel, PPGI, aluminum, and cold-rolled coil . For narrower widths (914–1450mm) or thinner gauges (0.15–2.5mm), Wadjay’s compact slitting line offers a flexible alternative .
Q2: How fast is the production line?
A: Line speed reaches up to 30 meters per minute . The synchronized flying shear delivers clean burr-free cuts on the fly without stopping the line, maximizing throughput.
Q3: How many strips can be produced simultaneously?
A: The adjustable rotary gang blades use tool steel slitting arbors with quick clearance adjustment . Wadjay’s slitting lines can be configured with 3–10 blade sets, holding up to 9 knives to cut up to 10 different strip widths for trim production .
Q4: How precise is the cut-to-length accuracy?
A: The synchronized flying shear with high-speed hydraulic cutter tracks material speed to deliver clean burr-free end cuts on the fly . The smart PLC with built-in encoder executes precise automated batch length counting for repeatable accuracy.
Q5: What is the coil capacity?
A: The machine handles heavy raw coils up to 5–10 tons smoothly via continuous uncoiling & feeding, without coil slippage or surface scratching .
Q6: Can the voltage be customized for my country?
A: Yes. Standard operation voltage is 220V/380V three-phase, with custom electrical motors available to match localized factory grids (220V/415V/440V at 50Hz/60Hz) .
Q7: What upgrade options are available?
A: Optional add-ons include hydraulic powered uncoiler with loading car, automated stacking & stacking table attachment, and custom electrical motors for any global voltage requirement .
Q8: What is the footprint and weight of the machine?
A: The cut to length slitting line has a total machine weight of 5,000kg built on a rigid heavy-duty frame . The continuous operation design is engineered for industrial-scale production environments.
